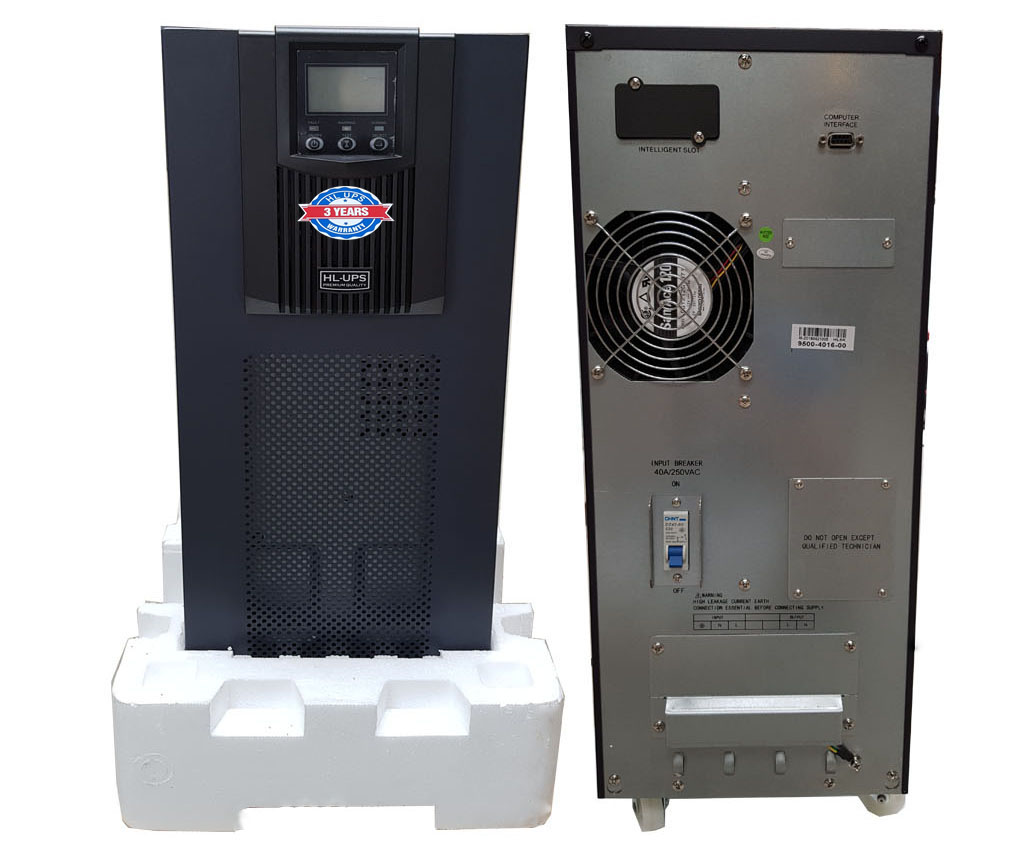

UPS online HL-6K/4800w

UPS MODEL	HL-6K
Rated capacity	6KVA/4.8KW
INPUT
Wire method	Single phrase with ground
Rated voltage	220VAC
Normal Voltage	120VAC - 275VAC ±5
Rated Freq	50HZ
Frequency Range	(45- 55)HZ±0.5HZ
Bypass range	187VAC-264VAC
BAT
Battery Type	12V7.2AH
Numbers	16
Backup time	Long run unit depends on the capacity of external batteries
Typical recharge time	8 hours recover to 90% capacity (Typical)
Rated voltage	192VDC
Charing voltage	219VDC
Charing Current	1A
AC OUTPUT
Output system	Single phrase & earth ground
OutPut voltage	220VAC±3%
Output frequency	50HZ±1%
Dynamic voltage transient range	<5%
Dynamic transient restore	<60ms
Waveform	Sine ware THD<3%(linear load) Sine ware TDH<8%(nonlinear load)
Input power factor	0.8
Overload capability	105%-125% 30s to Bypass
Communications	RS232(turn to 485), Intelligelt slot
Physical
Dimensions	W240H500D460mm
Weight(kg)	66.5
Environmental
Ambient temperature	10ᵒC - +40ᵒC
Altiude	Lower than 1000m: no derating Over 1000m: 1% derating for every 100m rise
Storage temperature	15ᵒC - + 45ᵒC
